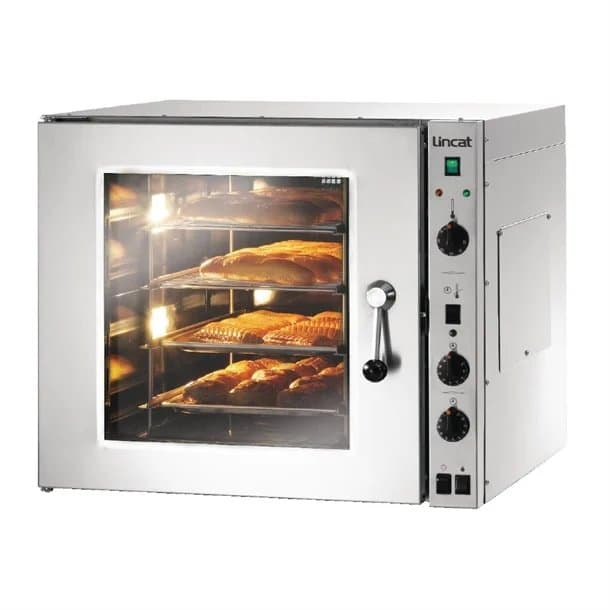

Lincat Countertop Convection Oven, 7.5kw, Model- EC09

Lincat ECO9 Specialist 4 x 1/1 GN Electric Convection Oven – 7.5kW

The Lincat ECO9 is a powerful commercial electric convection oven designed for demanding professional kitchens. With a generous 170 litre capacity and space for 4 x 1/1 GN containers, it provides significantly greater capacity and power than the smaller ECO8.

The ECO9 features twin-fan air circulation for efficient and even cooking, together with fast heat-up and recovery. Its water injection facility introduces moisture into the cooking chamber and is particularly useful for achieving a professional finish when baking breads and pastries.

A cook-and-hold facility reduces the oven temperature at the end of the cooking period, while the double-glazed door improves energy efficiency. The oven is constructed from stainless steel for durability in a commercial kitchen.

IMPORTANT ELECTRICAL REQUIREMENT – the ECO9 is a high-powered 7.5kW commercial oven and is NOT a standard 13A plug-in appliance. It requires a dedicated hardwired electrical connection and professional installation.

For a 230V single-phase installation, the electrical requirement is 32.6A. The ECO9 can also be connected to a 400V three-phase supply. Customers should ensure that a suitable electrical supply is available before ordering and installation should be carried out by a suitably qualified professional.

IMPORTANT WATER REQUIREMENT – the ECO9's water injection facility requires connection to a mains water supply. The specified water inlet is 3/4" with an operating pressure of 0.2–10 bar. A drain connection is not required.

The ECO9 can be paired with the compatible Lincat ECO9/FS floor stand to create a practical freestanding installation. The ECO9/FS floor stand is NOT included with the oven and is available separately.

Includes 2–3 working day Mainland UK courier delivery – shipped directly from the manufacturer.

Supplied with Lincat’s 2-year parts and labour warranty.

Key Features -

* Heavy-duty commercial electric convection oven
* Large 170 litre oven capacity
* Capacity for 4 x 1/1 GN containers
* Twin-fan air circulation
* Water injection facility
* Cook-and-hold facility
* Double-glazed door
* Robust stainless steel construction
* Powerful 7.5kW electrical rating
* IMPORTANT – NOT suitable for connection to a standard 13A socket
* Requires a dedicated hardwired electrical connection
* 230V single-phase or 400V three-phase connection options
* 32.6A requirement when connected to 230V single phase
* Professional electrical installation required
* Requires connection to a mains water supply
* No drain connection required
* Compatible with Lincat ECO9/FS floor stand
* ECO9/FS floor stand is NOT included and is sold separately

Technical Specification -

* Model – ECO9
* Product Type – Electric Countertop Convection Oven
* Capacity – 170 Litres
* Gastronorm Capacity – 4 x 1/1 GN
* Power – 7.5kW
* Electrical Connection – Direct Hardwired
* Standard 13A Plug – No
* Single Phase Supply – 230V / 32.6A
* Three Phase Supply – 400V
* Three Phase Amperage – L1 6.7A / L2 13.0A / L3 13.0A
* Professional Installation Required – Yes
* Dimensions – 766(W) x 840(D) x 652(H) mm
* Net Weight – 95.9kg
* Water Connection – Required
* Water Inlet – 3/4"
* Water Pressure – 0.2–10 bar
* Drain Connection – Not Required
* Compatible Floor Stand – ECO9/FS (sold separately)
* Warranty – 2 years parts and labour
