Lincat Convector Convection Oven, Manual Controls, 2.8kw, Model- CO223M

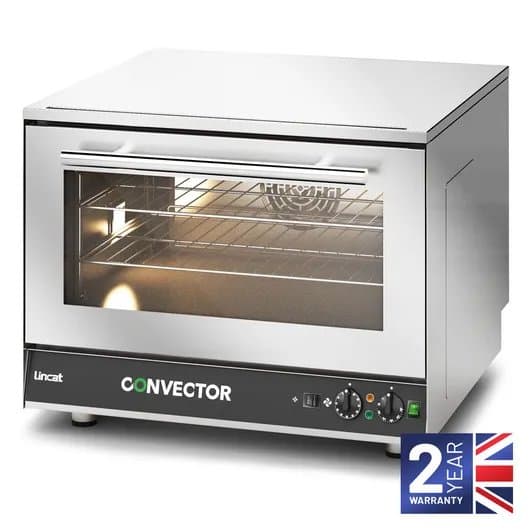

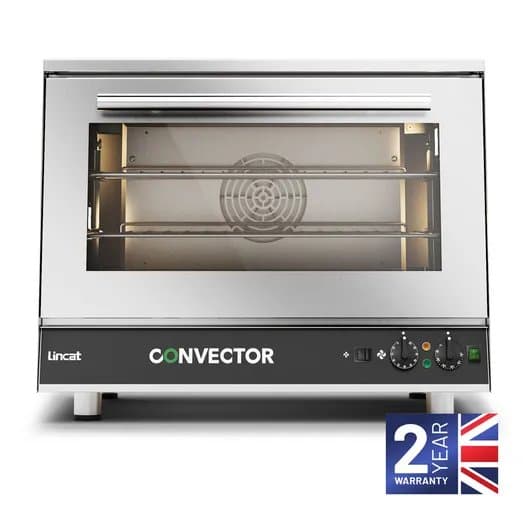

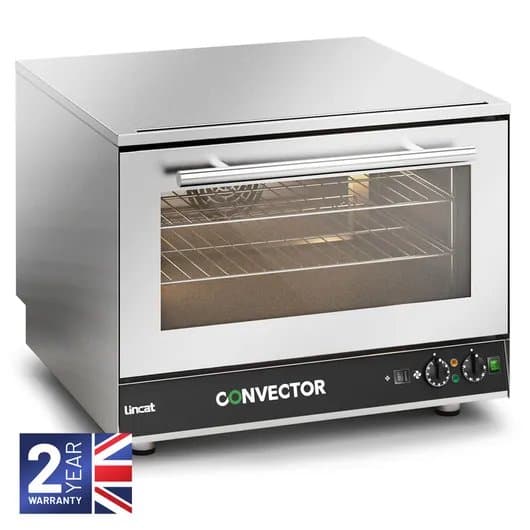

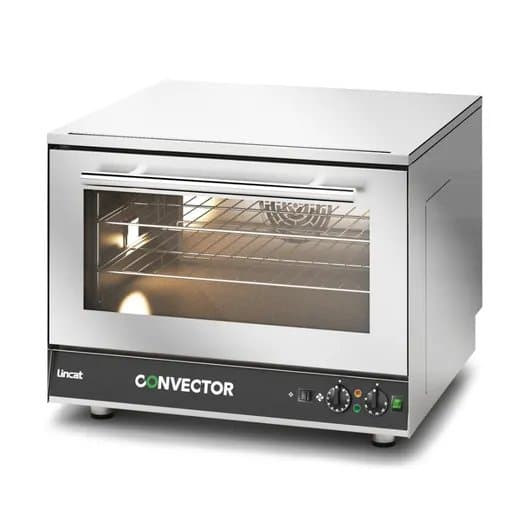

Lincat CO223M Convector Manual+ Commercial Convection Oven – 96 Litre, 13A Plug-In

The British-made Lincat CO223M Convector Manual+ is a powerful and versatile commercial countertop convection oven, combining a generous 96-litre capacity with the convenience of a standard 13A plug-in electrical connection.

Ideal for busy cafés, pubs, restaurants, hotels, schools, care homes and other professional kitchens, the CO223M is suitable for roasting, baking, reheating and preparing a wide variety of dishes.

Unlike many commercial convection ovens that require hardwiring or a three-phase electrical supply, the CO223M operates from a standard UK 13A socket, making it particularly attractive for kitchens with limited electrical capacity.

With a two-speed, bi-directional fan, straightforward mechanical temperature controls and capacity for two GN1/1 containers, this British-made oven offers professional cooking performance without complicated controls.

13A Plug-In – No Hardwiring Required

One of the biggest advantages of the CO223M is its straightforward electrical connection.

The oven operates from a standard 230V single-phase electrical supply and is supplied with a fitted UK 13A three-pin plug.

* Power – 3kW / 3000W
* Voltage – 230V
* Phase – Single phase
* Electrical Load – 13A
* Connection – Standard UK 13A plug
* Hardwiring Required – No
* Three-Phase Supply Required – No
* Dedicated Electrical Circuit – Required

The CO223M can therefore be installed without the expense of a dedicated high-current or three-phase supply, provided a suitable dedicated 13A electrical circuit is available.

Two-Speed Fan for Versatile Cooking

The CO223M features an electronically controlled, two-speed bi-directional fan designed to distribute heat evenly throughout the cooking chamber.

The standard fan speed is ideal for general roasting, baking and reheating, while the slower fan speed is particularly useful when preparing more delicate products.

The bi-directional fan changes direction during operation, helping promote consistent cooking results across both shelf positions.

Simple Manual Controls

The Convector Manual+ combines traditional mechanical temperature control with electronically controlled fan operation.

The adjustable temperature range of 60°C to 260°C makes the oven suitable for a wide variety of commercial cooking applications.

A 120-minute countdown timer incorporates an audible buzzer, while the oven lamps flash when the cooking cycle has finished, helping kitchen staff identify completed cooking cycles during busy service.

Generous 96-Litre Capacity

Despite being a countertop oven, the CO223M offers a substantial 96-litre cooking chamber.

The oven accommodates:

* 2 x GN1/1 Gastronorm containers
* 2 x 600 x 400mm Euronorm trays
* 2 x 660 x 460mm baking sheets

Two wire shelves are included as standard.

The large cooking chamber makes the CO223M particularly useful for establishments requiring professional convection cooking without installing a larger floor-standing oven.

Compatible Floor Stand – Sold Separately

The CO223M can be positioned on a suitable commercial worktop or installed on the dedicated Lincat floor stand.

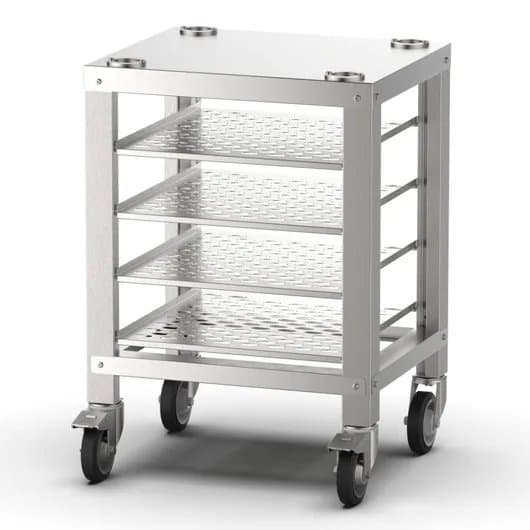

* CO200/FS – Lincat Convector Floor Stand with 4 runners, specifically designed for the CO223M and other compatible Convector ovens.

The CO200/FS provides a stable floor-standing installation and additional tray storage beneath the oven.

Please note: The CO200/FS floor stand is an optional accessory and is SOLD SEPARATELY. It is not included in the advertised oven price.

Please contact us if you would like to purchase the compatible floor stand alongside your oven.

Key Features -

* British-made Lincat Convector Manual+ commercial convection oven
* Large 96-litre cooking capacity
* Convenient standard UK 13A plug-in connection
* 3kW heating power
* 230V single-phase electrical supply
* No hardwiring or three-phase supply required
* Two-speed electronically controlled fan
* Bi-directional fan helps distribute heat evenly
* Standard and slow fan speeds for different cooking requirements
* Simple mechanical temperature controls
* Adjustable temperature range from 60°C to 260°C
* 120-minute countdown timer with audible buzzer
* Oven lamps flash when the cooking cycle finishes
* Suitable for roasting, baking and reheating
* Capacity for 2 x GN1/1 containers
* Compatible with 600 x 400mm Euronorm trays
* Two wire shelves included
* Stainless steel cooking chamber
* Drop-down door with viewing glass
* Interior oven lighting
* Compact countertop installation
* No mains water connection required
* No drain connection required
* Compatible CO200/FS floor stand available separately
* 2-year Lincat parts and labour warranty

Technical Specification -

* Model – CO223M
* Range – Lincat Convector Manual+
* Product Type – Commercial countertop convection oven
* Capacity – 96 litres
* Heating Power – 3kW / 3000W
* Voltage – 230V
* Phase – Single phase
* Electrical Load – 13A
* Electrical Connection – Standard UK 13A three-pin plug
* Dedicated Circuit Required – Yes
* Hardwiring Required – No
* Three-Phase Supply Required – No
* Temperature Range – 60°C to 260°C
* Temperature Control – Mechanical
* Fan – Electronically controlled, two-speed, bi-directional
* Timer – 120-minute countdown timer
* Gastronorm Capacity – 2 x GN1/1
* Euronorm Capacity – 2 x 600 x 400mm
* Baking Sheet Capacity – 2 x 660 x 460mm
* Shelves Included – 2 wire shelves
* Shelf Dimensions – 660(W) x 425(D)mm
* Cooking Chamber Dimensions – 690(W) x 470(D) x 308(H)mm
* External Dimensions – 810(W) x 850(D) x 645(H)mm
* Net Weight – 91kg
* Door – Drop-down stainless steel door with viewing glass
* Interior Lighting – Halogen
* Water Connection Required – No
* Drain Connection Required – No
* Installation – Countertop or compatible floor stand
* Compatible Floor Stand – CO200/FS, 6 runners, sold separately
* Country of Manufacture – United Kingdom
* Warranty – 2 years parts and labour
