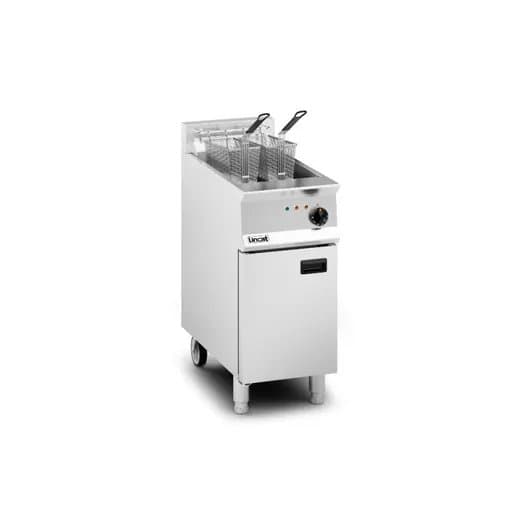

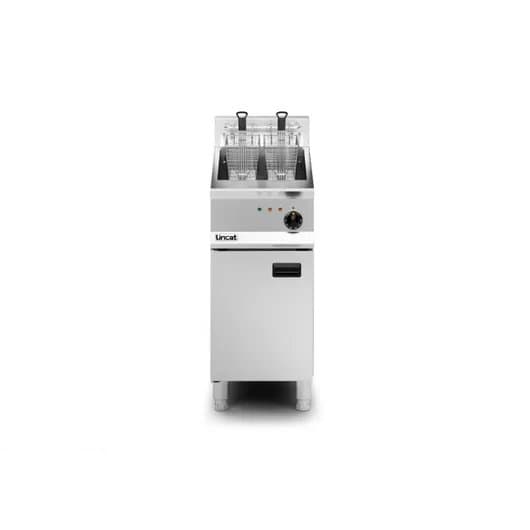

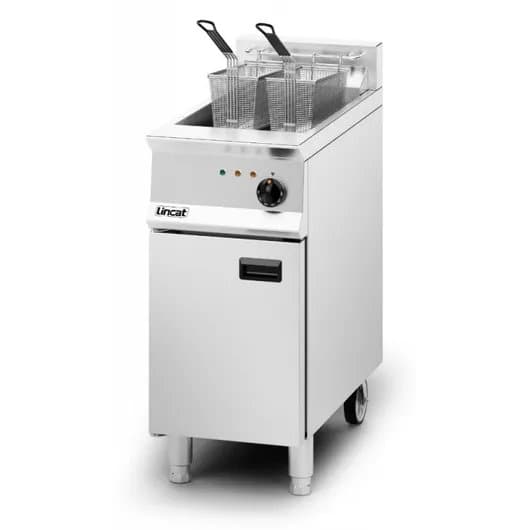

Lincat Opus 800 Single Tank 40cm Width Three Phase Electric Fryer, Model- OE8114

Lincat OE8114 Opus 800 Electric Fryer – 20 Litre, 14kW

The Lincat OE8114 is a powerful, heavy-duty electric fryer from the professional Opus 800 range, offering excellent commercial frying performance from a compact 400mm wide footprint.

Featuring a large 20 litre single frying tank, two baskets and a powerful 14kW output, the OE8114 is ideal for busy pubs, restaurants, hotels, takeaways and other professional kitchens where high output is required without taking up excessive valuable kitchen space.

Capable of producing up to 41kg of frozen chips or 45kg of chilled chips per hour, the OE8114 combines high productivity with accurate thermostatic temperature control for consistent frying results.

The hinged lift-out heating element provides straightforward access to the tank for cleaning, while oil drainage through the body of the fryer helps make routine oil changes easier.

Key Features -
* Heavy-duty Lincat Opus 800 electric fryer
* Large 20 litre oil capacity
* Single frying tank
* Supplied with 2 frying baskets
* Powerful 14kW output
* Compact 400mm wide footprint
* Up to 41kg frozen chips per hour
* Up to 45kg chilled chips per hour
* Recommended batch weight – 1.5kg per basket
* Accurate thermostatic temperature control
* Maximum operating temperature – 190°C
* Hinged lift-out heating element for easier cleaning
* Safety interlock for safer access to the element
* Oil drainage through the body of the fryer
* Heavy-duty stainless steel construction
* Designed for demanding professional kitchens
* 2-year Lincat parts and labour warranty

Electrical Requirements -
* Electrical Supply – 400V three phase
* Total Electrical Load – 14kW
* Current – 20.3A per phase
* Electrical Connection – Direct hardwired
* 13A Plug – Not suitable
* Three Phase Supply – Required
* Professional electrical installation required

Technical Specification -
* Model – OE8114
* Range – Lincat Opus 800
* Product Type – Free-standing electric fryer
* Energy Type – Electric
* Tank Configuration – Single tank
* Oil Capacity – 20 litres
* Tank Dimensions – 350(W) x 390(D)mm
* Baskets – 2
* Power – 14kW
* Electrical Supply – 400V three phase
* Current – 20.3A per phase
* Electrical Connection – Hardwired
* Maximum Temperature – 190°C
* Frozen Chip Output – Up to 41kg per hour
* Chilled Chip Output – Up to 45kg per hour
* Dimensions – 400(W) x 800(D) x 1020(H)mm
* Weight – 58kg
* Construction – Stainless steel
* Installation – Free-standing
* Warranty – 2 years parts and labour

Pumped Filtration Version Also Available -

The OE8114 is also available as the OE8114/OP with Lincat’s integral two-stage pumped oil filtration system.

* OE8114 – Non-Pumped Version
The model featured on this page. It provides the lowest initial purchase price while retaining the same 14kW frying performance and 20 litre single-tank capacity. Ideal where built-in filtration isn't required or the kitchen already uses a separate method of filtering its cooking oil.

* OE8114/OP – Pumped Filtration Version
Adds Lincat’s integral two-stage pumped oil filtration system. Oil can be filtered while hot and pumped back into the fryer, significantly reducing the time and manual handling involved in regular filtration.

Lincat states that its two-stage filtration can extend cooking oil life by up to 75%, helping reduce replacement oil costs and waste-oil disposal. The pumped system can have the oil filtered and ready for frying again in less than five minutes.

For busy kitchens with regular fryer use, the OE8114/OP can therefore provide significant operational and long-term cost-saving benefits over the standard non-pumped model.

Includes typical 2–3 working day Mainland UK courier delivery – shipped directly from the manufacturer.
